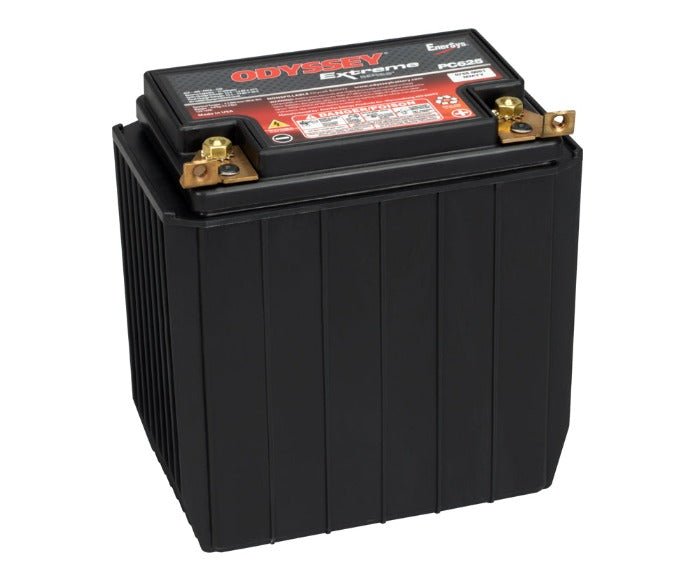

Odyssey ODS-AGM16CL Powersport Battery (PC625)
Powersport vehicles need a powerful battery that’s built to take the constant pounding that comes with the territory, whether it’s is on land, sea, or snow.

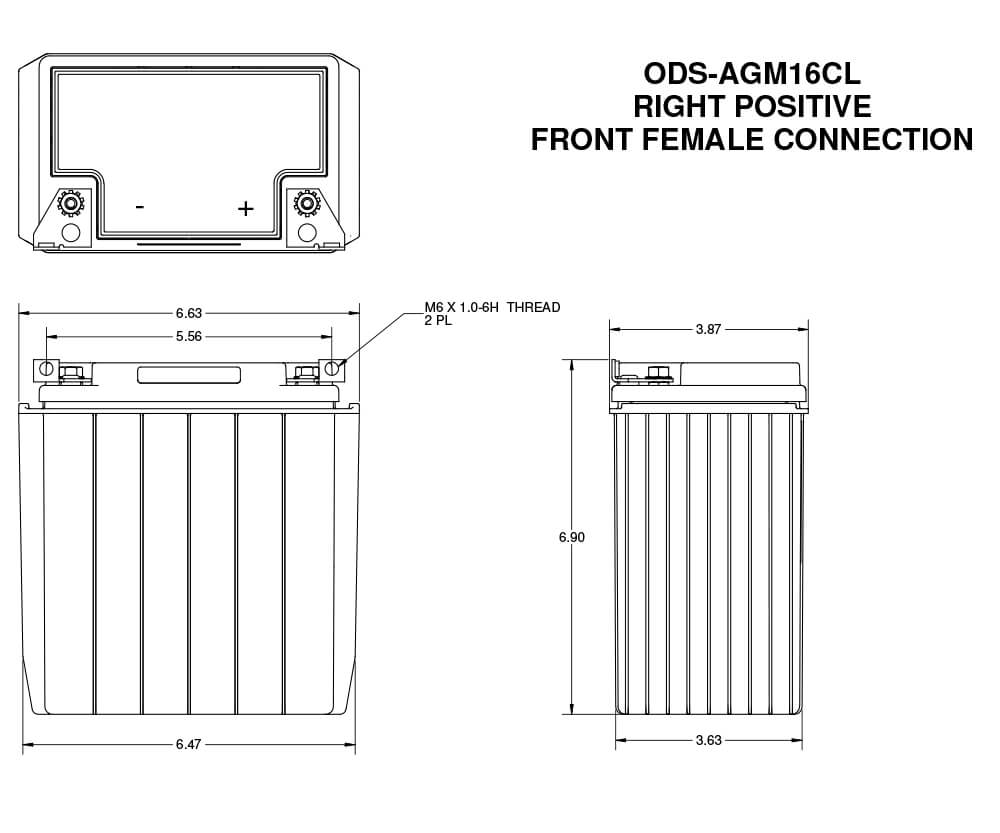

The ODYSSEY battery can handle it. Featuring rugged construction and packed tightly with pure lead plates, the non-spillable AGM design ODYSSEY battery protects against the shock and vibration that can quickly destroy other batteries. And the pure lead plates mean more power-twice the overall power and three times the life of conventional batteries-up to 400 cycles at 80% depth of discharge!Dimensions
| BM Part #: |
PC625 |
| Made In: |
U.S.A. |
| Battery Polarity: |
 |
| Voltage: |
12 Volt |
| Capacity: |
17 Ah |
| Type: |
AGM |
| Length: |
6.70" |
| Width: |
3.90" |
| Height: |
6.89" |
| Cold Cranking Amps: |
220 CCA |
| Shipping Weight: |
15.00Lbs |
| Warranty: |
2-3 Year (Warranty Info) |
|
Additional Specs:
- 220 CCA, 330 MCA, 400 HCA
- 540 Cranking Amps for 5 Seconds
- 27 Minute Reserve Capacity
- Cycle life @ 77° F 400 at 100% DOD
- -40° F to 140° F Temperature Range
- Replaces YB16CL-B watercraft Jetski battery
- More Specs: (Adobe PDF)
- Catalogue number 0768-0001
|
|
FEATURES:
- Made in the USA. Why it matters:
- Superior craftmanship; rigorously tested; high-quality parts.
-
Better warranty
2 Years:
- Auxiliary Power Unit (APU)
- Non-engine Start Cycling Applications.
- PowerSports Applications.
3 Years for Non-BCI Sized:
- Commercial, Industrial, Marine and Automotive Applications
-
Longer service life
With 3-10 years of service life, ODYSSEY batteries save consumers time, money, and aggravation.
-
Longer cycle life
70% longer cycle life compared to conventional deep cycle batteries - up to 400 cycles at 80% depth of discharge - high stable voltage for longer periods of time.
-
Longer shelf life
Can be stored on open circuit (nothing connected to the terminals) without the need for recharging up to 2 years or 12.00V, whichever occurs first.
-
Faster recharge
The highest recharge efficiency of any sealed lead battery on the market - capable of 100% recharge in 4 - 6 hours.
-
2 Batteries in 1
The characteristics of two separate batteries are combined in one box. It can deep cycle (be recharged) as well as provide enormous cranking power.
-
Superior cranking
The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as -40°C (-40°F).
-
Mounting flexibility
Non-spillable design - can be mounted on any side in any position except inverted.
-
Vibration resistance
Design protects against high impact shock and mechanical vibration - a common cause of premature battery failure.
-
Extreme temperature tolerance
Operating temperatures from -40°C (-40°F) to 45°C (113°F), for models without a metal jacket and from -40°C (-40°F) to 80°C (176°F) for models with a metal jacket.
-
Totally maintenance free
No need to add water, ever! Drycell design with resealable venting system.
-
Improved safety
US Department of Transportation classified as a 'non-spillable' battery. No acid spills, no escaping gases.
|
Odyssey Battery Technical Manual Click Here
