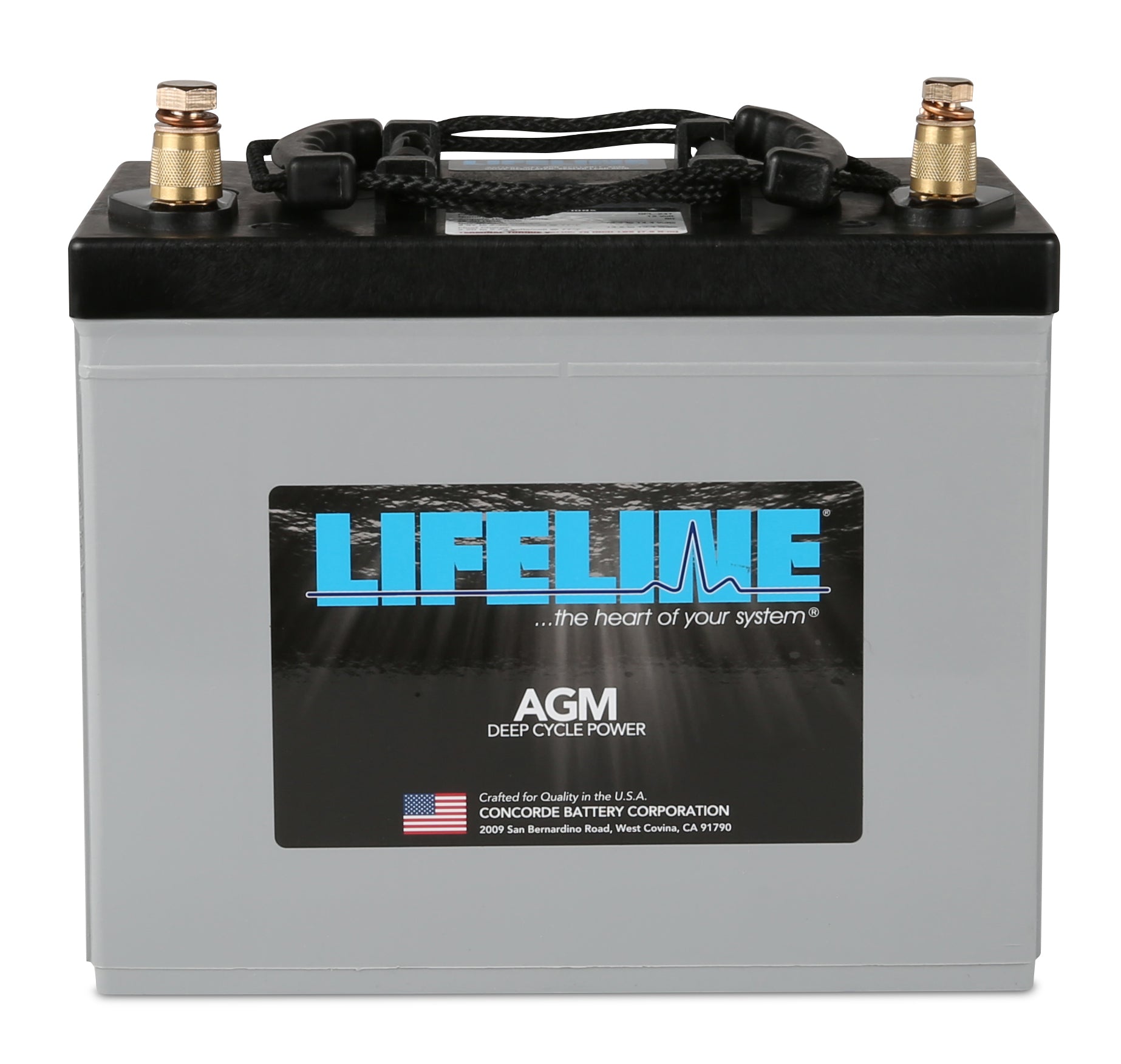

Lifeline GPL 24T Deep Cycle Battery 12v 80ah AGM 800CCA
SKU:
Lifeline Deep Cycle Battery Group Size 24 12v 80ah
The Lifeline GPL-24T is specifically designed for deep-cycle applications.
All Lifeline deep-cycle batteries are hand-made in the USA. These batteries are Coast Guard approved and have had to pass demanding mil spec requirements as they are onboard numerous US Military vessels. They are designed to deliver industry leading reserve capacities and life-cycle capabilities. The perfect combination of premium quality materials and perfected proprietary processes have catapulted Lifeline to an industry leader in value and customer satisfaction. All Lifeline deep cycle batteries are backed with an industry-leading 5 year warranty.
Warranty Period:Free Replacement MonthsPro-rate MonthsMarine & RV application1260Electric Vehicles36All Electric Machinery03All other Applications39
Typically AGM batteries DO NOT require a special battery charger as charge requirements are similar to Wet Cell or other types of Maintenance Free batteries. If you are in unsure about the charger you need please contact one of our technical advisors.
Batteries ship from various warehouses and usually deliver within 7 working days. Discount quantity pricing available please contact us by email or by phone during business hours.

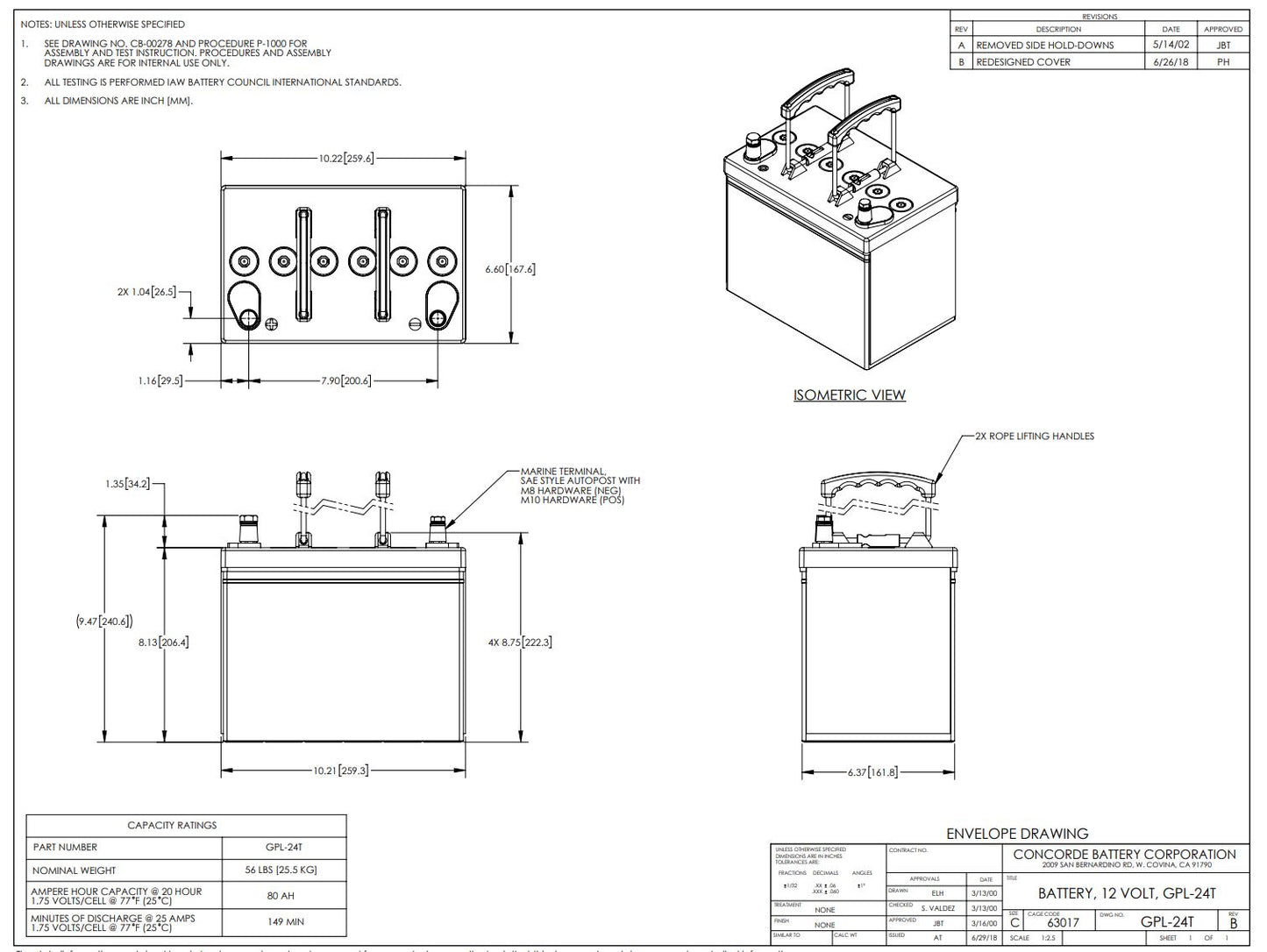

SPECIFICATIONS
Marine and RV Battery
| Battery Specifications | |
|---|---|
| Volts | 12 |
| Length In (mm) | 10.22 (259.58) |
| Width In (mm) | 6.6 (167.6) |
| Height In (mm) | 9.25 (234.8) |
| Weight LB (kg) | 56 (25.5) |
| Rated Cap. Amps Hours @ 20hr Rate | 80 |
| Cold Cranking Amps | |
|---|---|
| 68F | 800 |
| 32F | 680 |
| 0F | 550 |
| Minutes of Discharge | |
|---|---|
| 25 Amps | 149 |
| 15 Amps | 259 |
| 8 Amps | 524 |
Product Documents
Lifeline Warranty Information (external link to Lifeline's website)
| Part Number | Description | Nom. Volts | CCA @ -18°C | Amp /Hr @C20 Rate | Reserve Capacity mins @25A | Terminal layout with Term closest | Length mm | Width mm | Height mm | Weight Lbs |
| GPL-U1T | Lifeline 12V 33AH AGM Battery (USA 24-4/ U1) | 12 | 215 | 33 | 50 | +TI - | 196 | 132 | 175 | 24.03036 |
| GPL-24T |
Lifeline 12V 80AH AGM Battery (USA N50Z) 01725632 01725762 |
12 | 550 | 80 | 149 | + MC - | 283 | 168 | 235 | 56.21781 |
| GPL-27T | Lifeline 12V 100AH AGM Battery (USA N70ZZ) | 12 | 575 | 100 | 186 | + MC - | 333 | 168 | 235 | 65.03629 |
| GPL-31T | Lifeline 12V 105AH AGM Battery (USA 86) | 12 | 600 | 105 | 195 | + MC - | 328 | 172 | 236 | 69.22507 |
| GPL-31XT | Lifeline 12V 125AH AGM Battery (USA 86 approx) | 12 | 650 | 125 | 230 | + MC - | 328 | 172 | 236 | 74.95708 |
