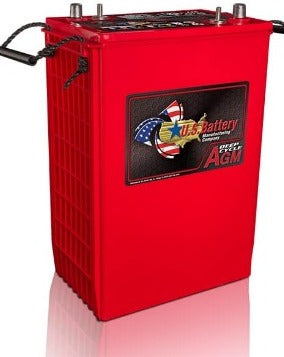

US Battery 6-Volt Deep Cycle Sealed AGM
All of U.S. Battery’s Deep Cycle AGM Batteries feature the latest and most advanced paste and plate making technologies available.
Our Premium Deep Cycle AGM Batteries are Sealed and Maintenance Free. They are Spill Proof, will not leak, and can withstand most freezing temperatures.
U.S.Battery’s Deep Cycle AGM products offer several advantages over both conventional flooded and GEL lead acid battery types. Since the acid (electrolyte) is absorbed in glass-mats (AGM) surrounding the plates, they will not spill if broken. In addition, since there is no free liquid to cause damage if frozen, our AGM Batteries are rarely damaged by freezing temperatures. Heat generation is reduced during the charge and discharge cycle, providing you longer and more reliable life cycles. All of U.S.Battery’s AGM products have very low self discharge rates allowing our batteries to be stored for longer periods of time without the need to boost charge as often. Hydrogen gas emission is minimal, allowing U.S.Battery’s AGM products to be used in aircraft applications and in areas with enclosed spaces (but not in sealed or gas-tight containers)
All of our sealed AGM batteries are specifically manufactured for U.S. Battery under our guidelines assuring our customers they are being provided the highest quality AGM batteries available.

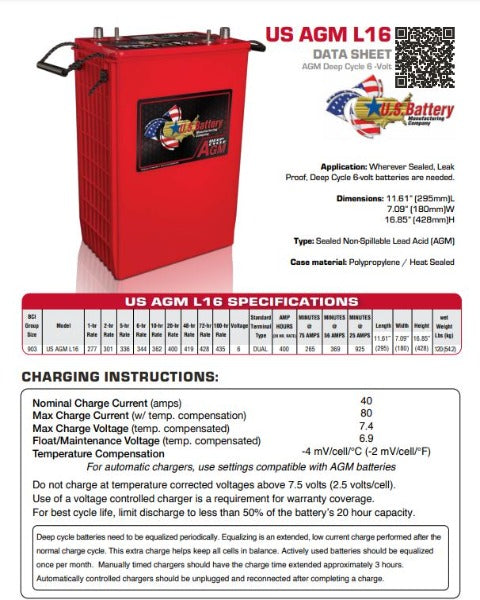

20 Hour Rate: 400
5 Hour Rate: 336
Minutes of Discharge @ 75 Amps: 265
Minutes of Discharge @ 56 Amps: 369
Minutes of Discharge @ 25 Amps: 925
Length: 11.61” (295mm)
Width: 7.09” (180mm)
Height: 16.85” (428mm)
Weight: 120 lbs (54.2kg)
Nominal Charge Current (amps): 40
Max Charge Current (w/ temp. compensation): 80
Max Charge Voltage (temp. compensated): 7.4
Float/Maintenance Voltage (temp. compensated): 6.9
Temperature Compensation: -4 mV/cell/ºC (-2 mV/cell/ºF)
For automatic chargers, use settings compatible with AGM batteries
Do not charge at temperature corrected voltages above 7.5 volts (2.5 volts/cell). Use of a voltage controlled charger is a requirement for warranty coverage. For best cycle life, limit discharge to less than 50% of the battery’s 20 hour capacity.
