$276.00

12v 16ah Battery Odyssey Extreme Series ODS-AGM16L/PC680

Product Availability: Moving Quickly
Fast Safe Checkout

SKU:

ODS-AGM16L

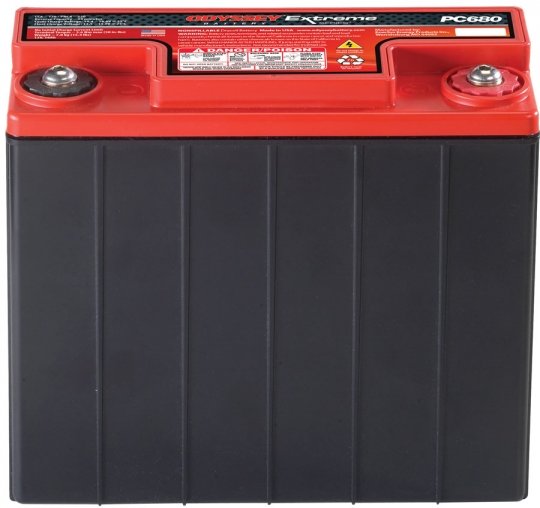

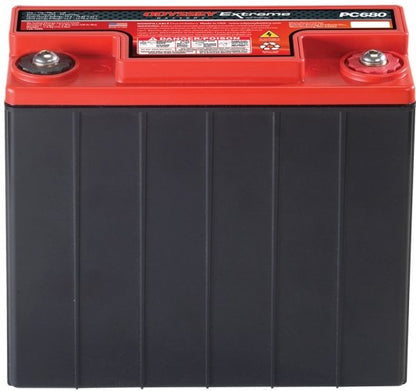

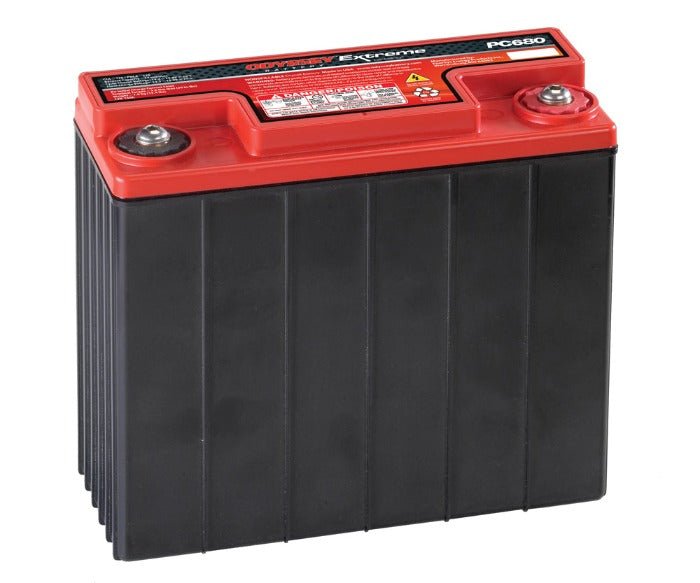

Odyssey Extreme Series ODS-AGM16L/PC680

The ODYSSEY battery can handle it. Featuring rugged construction and packed tightly with pure lead plates, the non-spillable AGM design ODYSSEY battery protects against the shock and vibration that can quickly destroy other batteries. And the pure lead plates mean more power-twice the overall power and three times the life of conventional batteries-up to 400 cycles at 80% depth of discharge!

 Specifications

BM Part #: PC680
Made In: U.S.A.
Battery Polarity: Right Positive Terminals
Voltage: 12 Volt
Capacity: 16 Ah
Type: AGM
Length: 7.13"
Width: 3"
Height: 6.5"
Cold Cranking Amps: 170 CCA
Shipping Weight: 16.00Lbs
Warranty: 2 Year (Warranty Info)




 Technical Information
  • 170 CCA, 280 MCA, 350 HCA
  • 520 Cranking Amps for 5 Seconds
  • 24 Minute Reserve Capacity
  • Cycle life @ 77° F 400 at 100% DOD
  • -40° F to 140° F Temperature Range
  • Replaces 0645-197, DYNA-BATT 5575B, 5575C, Y50N18L-A/A3
  • More Specs: (Adobe PDF)
  • Catalogue number 0769-2016
  • Made in the USA



The Deets:
  • Made in the USA. Why it matters:
    • Superior craftmanship; rigorously tested; high-quality parts.
  • Longer service life
    With 3-10 years of service life, ODYSSEY batteries save consumers time, money, and aggravation.
  • Longer cycle life
    70% longer cycle life compared to conventional deep cycle batteries - up to 400 cycles at 80% depth of discharge - high stable voltage for longer periods of time.
  • Longer shelf life
    This 12 volt 16 Ah battery can be stored on open circuit (nothing connected to the terminals) without the need for recharging up to 2 years or 12.00V, whichever occurs first.
  • Faster recharge
    The highest recharge efficiency of any sealed lead battery on the market - capable of 100% recharge in 4 - 6 hours.
  • 2 Batteries in 1
    The characteristics of two separate batteries are combined in one box. This 12 volt 16 Ah battery can deep cycle (be recharged) as well as provide enormous cranking power.
  • Superior cranking
    The 5 second cranking power of Odyssey batteries is double to triple that of equally sized conventional batteries, even when the temperature is as low as -40°C (-40°F).
  • Mounting flexibility
    Non-spillable design - can be mounted on any side in any position except inverted.
  • Vibration resistance
    Design protects against high impact shock and mechanical vibration - a common cause of premature battery failure.
  • Extreme temperature tolerance
    Operating temperatures from -40°C (-40°F) to 45°C (113°F), for models without a metal jacket and from -40°C (-40°F) to 80°C (176°F) for models with a metal jacket.
  • Totally maintenance free
    No need to add water, ever! Drycell design with resealable venting system.
  • Improved safety
    US Department of Transportation classified as a 'non-spillable' battery. No acid spills, no escaping gases.

Compatibilities and Cross Reference:



0436-183
0436-183-SNOW
0645-197
0645-432
0745-059
0745-059-SNOW
0745-230
0745-230-SNOW
0769-2016C0N0
0769-2016C0N6
12C16A-3B
12C19A-3B
12N20AH
12N20AH-BS
1436-252
26012-1012
26012-1124
26012-1139
26012-1187
26012-1188
26012-1240
61211459014
61211459245
61212306125
61212306626
61212346800
66010-82B
BT
31500-MN5-020AH
410301100
410301100-SNOW
410301201
410301201-SNOW
410922962
410922962-SNOW
4140005
4SH-82100-22-00
515175895
515175895-SNOW
518-014-015 Varta
519-013-017 Varta
51913
520-015-018 Varta
61.21-1 243 305
61.21-1 243 689
61.21-1 244 323
61.21-1 244 324
61.21-1 353 824
61.21-1 459 014
61.21-1 459 245
61.21-2 306 125
61.21-2 306 626
61.21-2 346 800
61211243305
61211243689
61211244323
61211244324
61211353824

C50-N18L-A3
CP18-12
E04528
E04944
ESC50N18LA3
GM18Z-3A
K26012-1018
K26012-2505
M2218Y
ODS-AGM16L
PC680
PC680-P
SC50-N18L-AT
SY50-N18
SY50-N18L-AT
Y50-N18L-A
Y50-N18L-A-CX
Y50-N18L-A3
Y50-N18LA-00-00
Y50-N18LA-00-00-SNOW
Y50-N80A-A
Y50N18L-A/A3
Y50N18LA
YB16AL-A2
YTX-20LBS-00-00
YTX24HL-BS
61212346800
