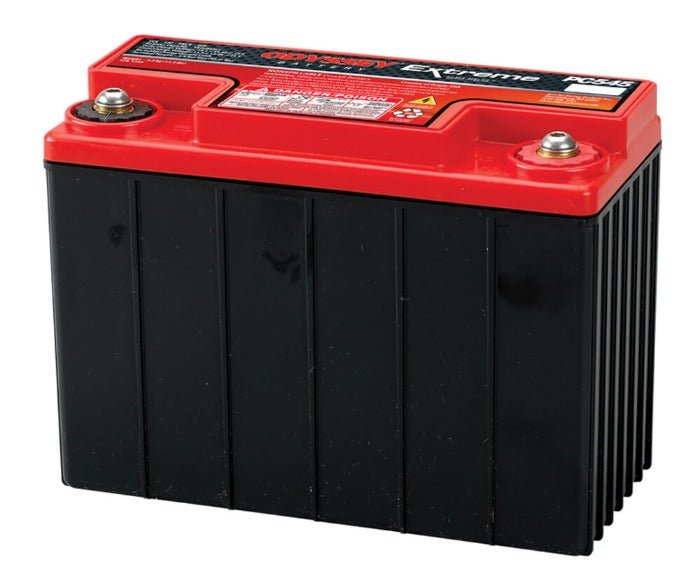

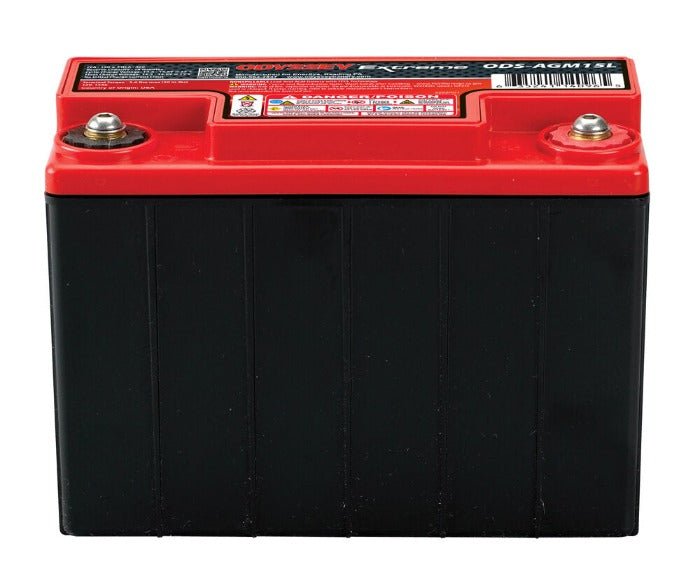

Odyssey Extreme Series ODS-AGM15L/PC545

ODYSSEY Extreme Series Battery

ODS-AGM15L

(PC545)

internally threaded brass terminals with M6 SS bolts

Powersport vehicles need a powerful battery that’s built to take the constant pounding that comes with the territory, whether it’s is on land, sea, or snow.

The ODYSSEY battery can handle it. Featuring rugged construction and packed tightly with pure lead plates, the non-spillable AGM design ODYSSEY battery protects against the shock and vibration that can quickly destroy other batteries. And the pure lead plates mean more power-twice the overall power and three times the life of conventional batteries-up to 400 cycles at 80% depth of discharge!

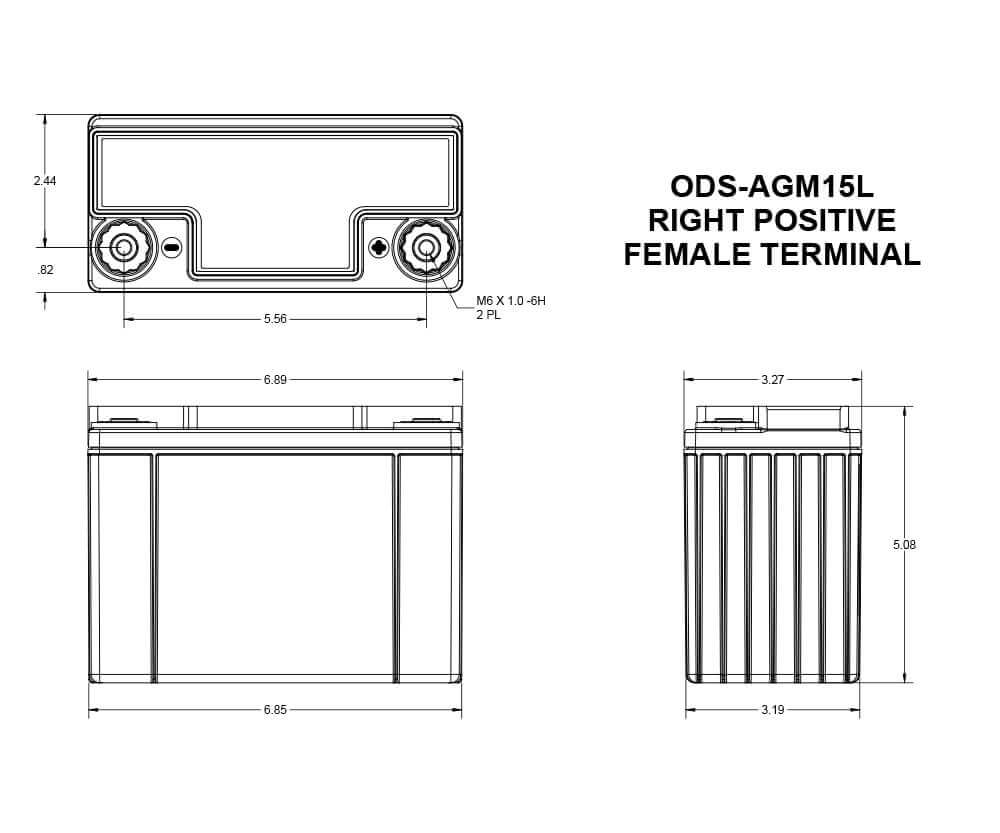

Dimensions

Length 6.91 in

Width 3.29 in

Height (terminals included) 4.89 in

Height (container) 5.12 in

Weight 11.4 lbs

Specifications

Voltage

12

Pulse (5 second) Hot Cranking Amps (PHCA)

460

Cold Cranking Amps (CCA)

150

HCA

280

MCA

220

20Hr Nominal Capacity (Ah)

13

10Hr Nominal Capacity (Ah)

12

Reserve Capacity Minutes

18

Terminal

M6 Receptacle

Torque Spec in-lbs (Nm max)

50 (5.6)

Internal Resistance

10

Short Circuit

1200
