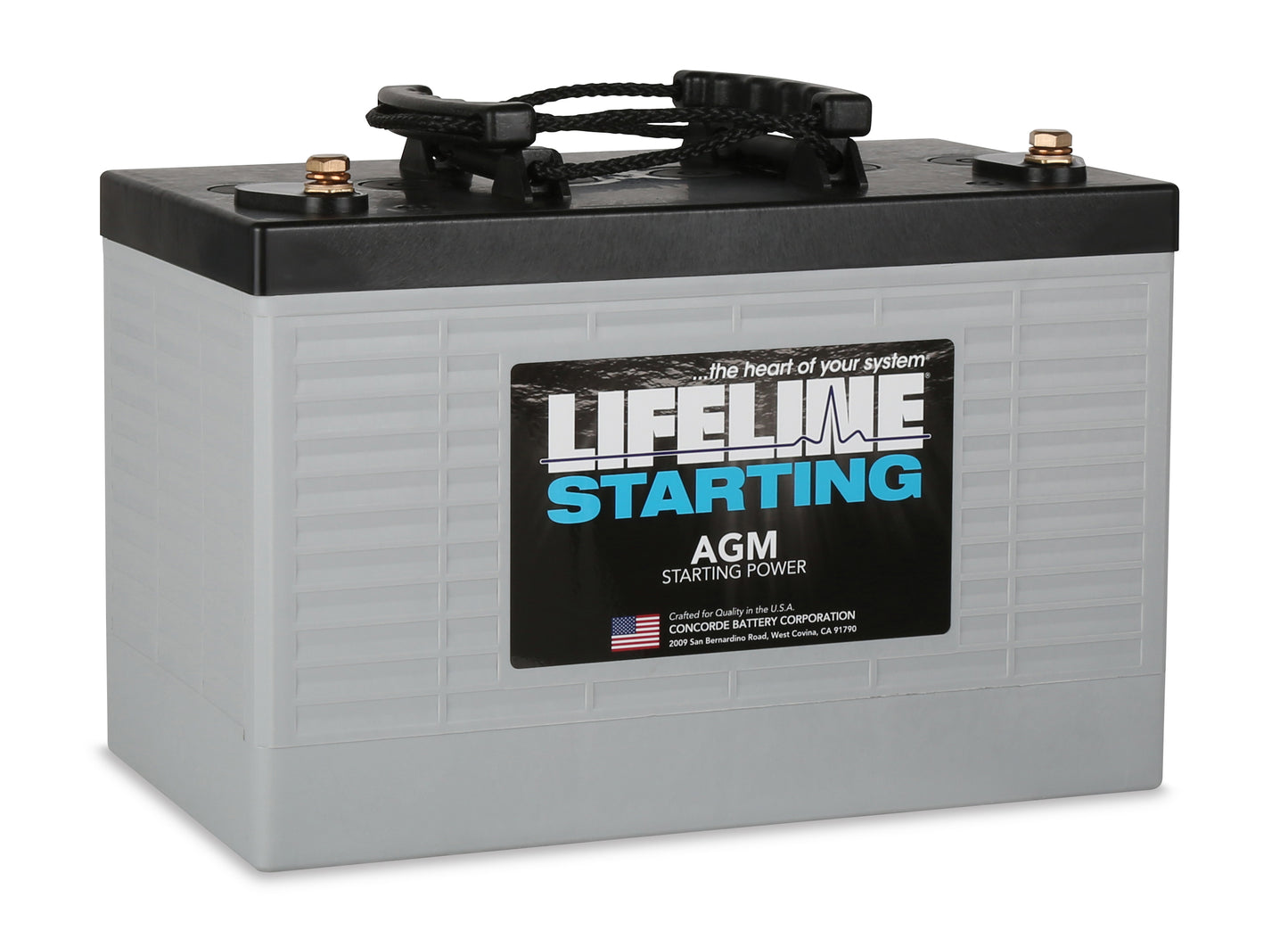

Lifeline GPL-3100T AGM Sealed Starting Battery 12V 1120CCA
SKU:
Lifeline GPL-3100T AGM Sealed Starting Battery 12V 1120CCA
- The Lifeline GPL-3100T has been specifically manufactured for starting applications.
- All Lifeline batteries are Coast Guard approved and hand-made in the USA.
- The preferred battery choice for both Recreational Vehicles and Marine applications.
- All Lifeline batteries pass demanding mil spec requirements as they are onboard numerous US Military Vehicles.
- All Lifeline batteries are backed with an industry-leading 5-year warranty.
ETA- 6-8weeks
Concorde Lifeline 12 Volts 1120 Cold Cranking Amps AGM Sealed Battery
NOTE: This is NOT a deep cycle battery. This is a starting battery for vehicles (auto, marine, RV).
The Lifeline GPL-3100T is specifically designed for the rigorous cranking demands of marine industry engines and generators.
All Lifeline cranking batteries are hand-made in the USA. These batteries are built using the same high standards and proprietary methods that are employed in the manufacturing of similar aircraft batteries for the US Military. They are designed to deliver ample cranking power when it is needed most and is perhaps best known as industry leaders in reliability and customer satisfaction. Lifeline cranking ratings are provided using the Battery Counsel International requirements which dictate each test run for a 30-second duration. All Lifeline cranking batteries are backed with an industry-leading 5-year warranty.
Battery Specifications | |
---|---|
Volts | 12 |
Length In (mm) | 12.9 (327.8) |
Width In (mm) | 6.74 (171.3) |
Height In (mm) | 9.27 (235.5) |
Weight LB (kg) | 67 (30.4) |
Cold Cranking Amps | |
---|---|
68F | 1120 |
32F | 950 |
0F | 810 |
Part Number | Description | Nom. Volts | CCA @ -18°C | Amp /Hr @C20 Rate | Reserve Capacity mins @25A | Terminal layout with Term closest | Length mm | Width mm | Height mm | Weight Lbs |
GPL-U1T | Lifeline 12V 33AH AGM Battery (USA 24-4/ U1) | 12 | 215 | 33 | 50 | +TI - | 196 | 132 | 175 | 24.03036 |
GPL-24T | Lifeline 12V 80AH AGM Battery (USA N50Z) | 12 | 550 | 80 | 149 | + MC - | 283 | 168 | 235 | 56.21781 |
GPL-27T | Lifeline 12V 100AH AGM Battery (USA N70ZZ) | 12 | 575 | 100 | 186 | + MC - | 333 | 168 | 235 | 65.03629 |
GPL-31T | Lifeline 12V 105AH AGM Battery (USA 86) | 12 | 600 | 105 | 195 | + MC - | 328 | 172 | 236 | 69.22507 |
GPL-31XT | Lifeline 12V 125AH AGM Battery (USA 86 approx) | 12 | 650 | 125 | 230 | + MC - | 328 | 172 | 236 | 74.95708 |
GPL-30HT | Lifeline 12V 150AH AGM Battery (USA 89) | 12 | 700 | 150 | 315 | + MC - | 342 | 172 | 304 | 95.90097 |
GPL-4DA | Lifeline 12V 210AH AGM Battery (USA N150) | 12 | 1100 | 210 | 390 | ± End SAE | 527 | 222 | 257 | 134.9227 |
GPL-4DL | Lifeline 12V 210AH AGM Battery (USA N150) | 12 | 1100 | 210 | 390 | ± L blade | 527 | 222 | 266 | 134.9227 |
GPL-8DA | Lifeline 12V 255AH AGM Battery (USA N200) | 12 | 1350 | 255 | 475 | ± End SAE | 527 | 278 | 251 | 162.26 |
GPL-8DL | Lifeline 12V 255AH AGM Battery (USA N200) | 12 | 1350 | 255 | 475 | ± L blade | 527 | 278 | 260 | 162.26 |
GPL-1400T | Lifeline 12V 55AH AGM Battery Starting | 12 | 550 | 45 | 90 | - TI + | 249 | 132 | 174 | 31.96699 |
GPL-2400T | Lifeline 12V 75AH AGM Battery Starting | 12 | 650 | 75 | 172 | RHP TI | 282 | 168 | 235 | 53.13134 |
GPL-2700T | Lifeline 12V 95AH AGM Battery Starting (USA N70Z) | 12 | 745 | 95 | 206 | - TI + | 333 | 168 | 227 | 63.05213 |
GPL-3100T | Lifeline 12V 100AH AGM Battery Starting (USA 86) | 12 | 810 | 100 | 228 | - TI + | 328 | 172 | 236 | 67.02045 |
GPL-4C | Lifeline 6V 220AH AGM Battery (US2200/GC2) | 6 | 760 | 220 | 492 | Offset TI | 261 | 181 | 294 | 66.1386 |
GPL-6C | Lifeline 6V 300AH AGM Battery (USA tall GC2) | 6 | 925 | 300 | 692 | Offset TI | 262 | 180 | 330 | 89.9485 |
GPL-L16T | Lifeline 6V 400AH AGM Battery (USA L16) | 6 | 135 | 400 | 950 | Offset TI | 296 | 177 | 399 | 119.0495 |
GPL-31T-2V | Lifeline 2V 630AH AGM Battery (USA 86) Dual Ti terms | 2 | 3240 | 630 | 1170 | Dual TIs | 328 | 172 | 227 | 69.22507 |
GPL-4CT-2V | Lifeline 2V 660AH AGM Battery (USA GC2/US2200 approx) | 2 | 2025 | 660 | 1476 | Offset TI | 261 | 181 | 294 | 70.10692 |
GPL-6CT-2V | Lifeline 2V 900AH AGM Battery (USA tall GC2 approx) | 2 | 2500 | 900 | 2076 | Offset TI | 262 | 181 | 330 | 93.91681 |
GPL-L16T-2V | Lifeline 2V 1200AH AGM Battery (USA L16) | 2 | 3645 | 1200 | 2850 | Offset TI | 296 | 177 | 399 | 119.0495 |
LL-1640TB | Lifeline 16V 40AH AGM Racing Serie | 16 | 1050 | 40 | 85 | LHP SAE | 258 | 167 | 205 | 368.1715 |
