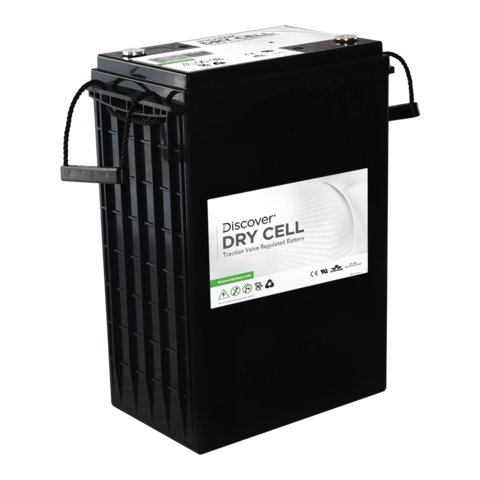

Discover EVL16A-A Dry Cell 6v 390ah AGM Battery
SKU:
Discover EVL16A-A Dry Cell Battery
Discover® DRY CELL Traction Industrial batteries outperform traditional Flooded, AGM, and Gel deep-cycle batteries in demanding traction and industrial applications. The batteries are designed to deliver a long runtime, high operating current and withstand deep discharge and are ideal for powering equipment that is used multiple times a day.
DRY CELL Traction Industrial batteries have been used and trusted for more than ten years by the world’s largest industrial Original Equipment Manufacturers. Specific charge algorithms are available that support optimal battery performance and longevity.

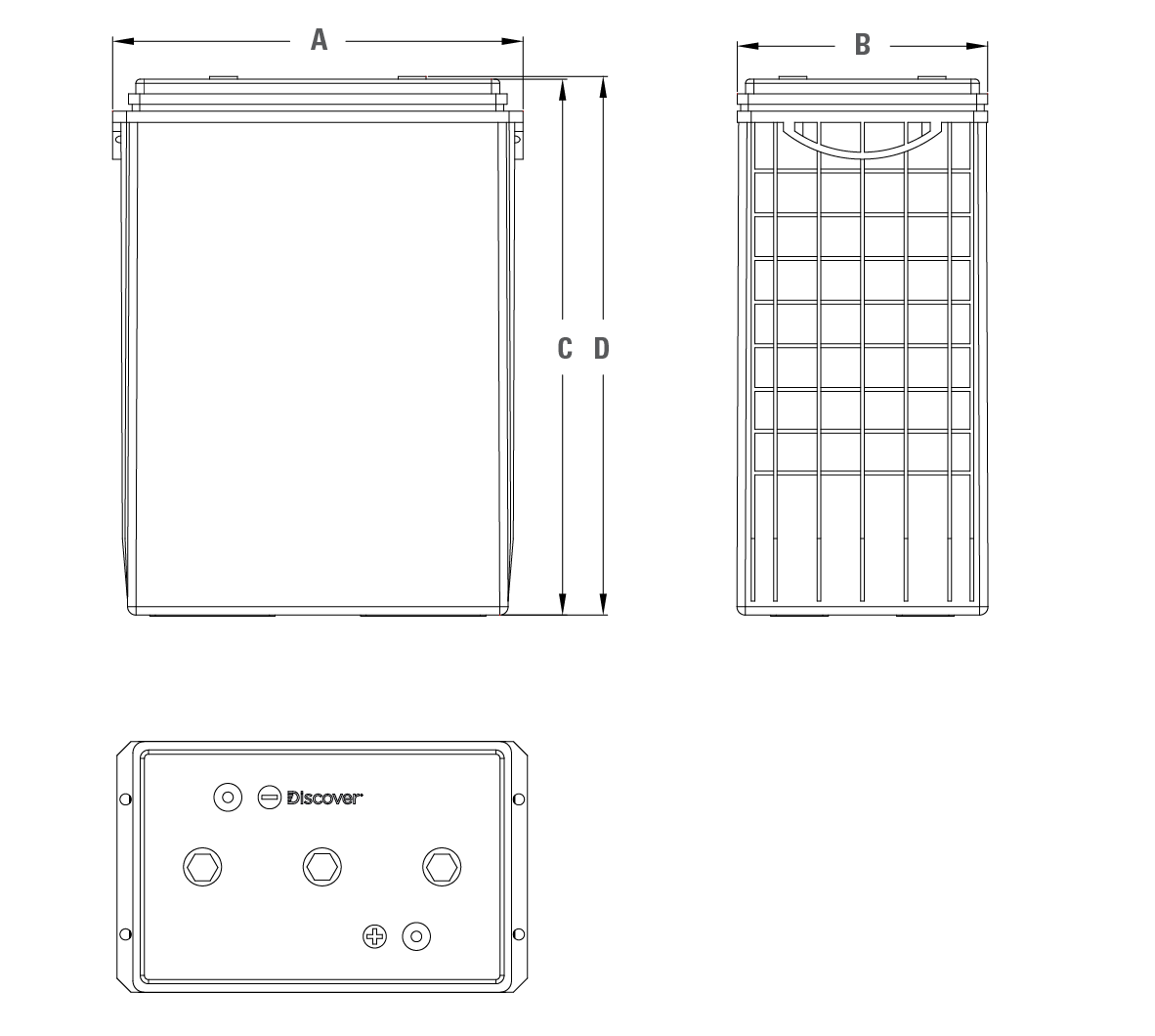

MECHANICAL SPECIFICATIONS
| Industry Reference | BCI: 903-L16 | |
| Length A (in/mm) | 11.6 | 295 |
| Width B (in/mm) | 7.1 | 180 |
| Height C (in/mm) | 15.1 | 383 |
| Total Height D (in/mm) | 15.2 | 385 |
| Weight (lbs/kgs) | 116.6 | 53 |

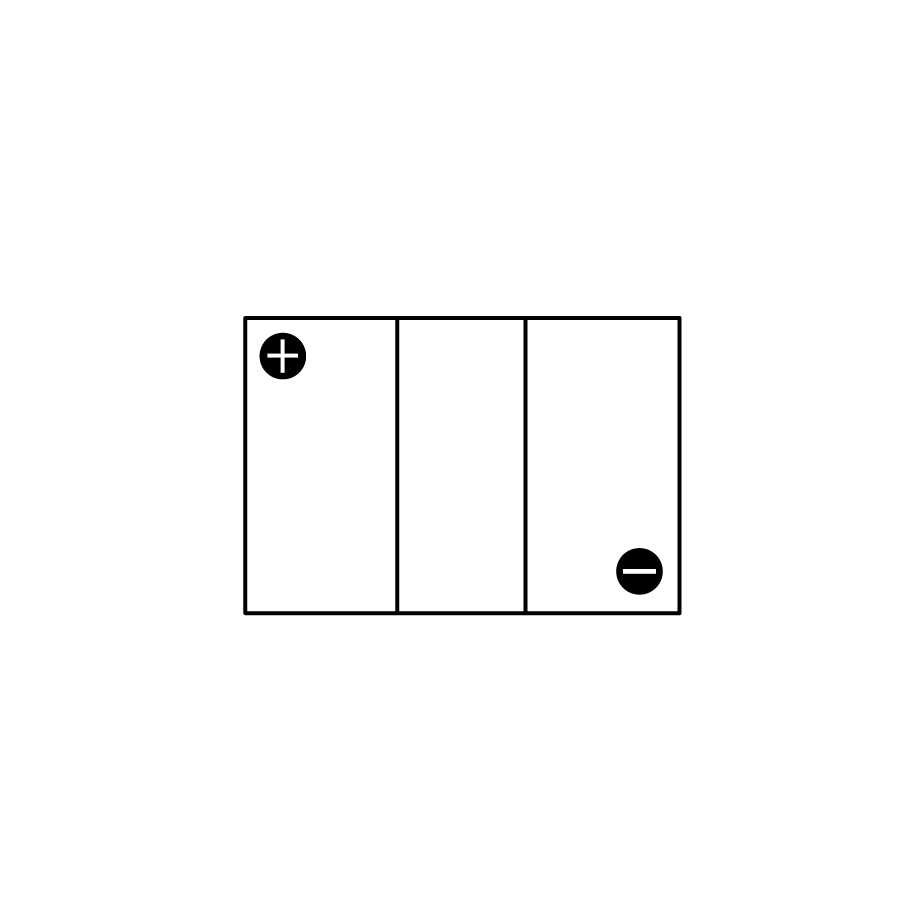

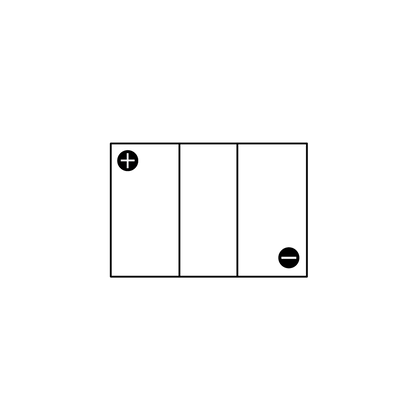

| Terminal * | F10M8 | |
| Technology | DRY CELL AGM, VRLA | |
NOTE 1: Dimensions have a ±2 mm (0.08 in) tolerance. Weights may vary.
NOTE 2: Refer to terminal guide on website for torque values.
ELECTRICAL SPECIFICATIONS
| Voltage (V) | 6 | |
| Internal Resistance (mΩ) | 1.46 | |
| Short Circuit (A) (20°C / 68°F) | 4100 | |
| Self-Discharge (20°C / 68°F) | 2-3% per month | |
| Charge Temperature | Min: -10°C (14°F) | Max: 50°C (122°F) | |
| Discharge Temperature | Min: -40°C (-40°F) | Max: 50°C (122°F) | |
| Storage Temperature | 6 | |
NOTE 3: Extra considerations must be given when designing systems for use at maximum temperatures.
NOTE 4: Internal Resistance is approximate.
PERFORMANCE SPECIFICATIONS
| Amp Hours (AH) | ||
|---|---|---|
| 3 HR | 5 HR | 20 HR |
| 295 | 340 | 390 |
3 HR: 1.70VPC; 5 HR: 1.75VPC; 20 HR: 1.80VPC. All at 25°C/77°F
| Minutes of Discharge | ||||
|---|---|---|---|---|
| @25A | @56A | @75A | @85A | @100A |
| 915 | 375 | 265 | 235 | 190 |
FEATURES
HYDRO POLYMER
- Organic capillary separators with hydro polymer electrolytes resist dry-out and prevent thermal runaway
- Maintains performance characteristics over operational life
ENHANCED ALLOYS
- Thick plates with graphite enhanced alloys deliver maximum runtime over operational life
CARBON BOOST
- Carbon additives to increase duty cycle performance, charge acceptance and partial state of charge operation
AUTOMATED THROUGH-THE-PARTITION WELD
- Improved intercell weld consistency, and less lead waste than manual welding process (key models)
- Supports higher current loads and lowers internal resistance
POLYPROPYLENE CASE
- High heat resistance and durability (key industry models)
- High precision pressure relief valves reduce water loss and extend life
- Integrated flame arrestors prevent fire and explosion
BENEFITS
ENHANCED RUNTIME
- High amp hour capacity
- High operational voltage over lifetime
- Delivers 80% DoD above 1.9 VPC
EXTENDED SERVICE LIFE
- Long life superior to deep-cycle FLA / AGM / Gel batteries
- 550+ cycles 70% DoD (IEC 254-1 Traction Lead-Acid)
- 350+ cycles 100% DoD (DIN 43 539 VRLA)
RESILIENCE
- Partial stage of charge operation superior to AGM
- Intense duty cycling superior to AGM / Gel
- Overcharge and over-discharge resilience superior to AGM
- Compatible with AGM / Gel semi-traction charge profile
EXTREME TEMPERATURES
- High temperature life superior to AGM
- Low temperature operation superior to FLA / AGM / Gel batteries
EXTREME VIBRATION RESISTANCE
- Vibration resistance superior to AGM / Gel
- Shock tested (IEC 61373, DIN EN 61373, SAE J537)
OEM TRUSTED
- Exceeds OEM specifications
- Innovative technology
- Global service and support
RELIABLE AND SAFE
- Valve Regulated Lead-Acid, Dry Cell AGM
- Maintenance-free, nonspillable, no-gassing
- Spark and explosion tested (SAE J1495)
CERTIFIED QUALITY
Discover® manufacturing facilities are fully certified to ISO 9001/14001 and OSHA 18001 standards.
Designed in accordance with and published in compliance with applicable standards, including:
- IEC 60254-1. Lead-Acid Traction
- DIN 43 539. VRLA
- SAE J537. Storage
- UL, CE Health Safety Certified
SHIPPING CLASSIFICATION
- Classified as a nonspillable battery
- Without restriction for transport by Sea (IMDG amendment 27)
- Without restriction for transport by Air (IATA/ICAO provision 67)
- Without restriction for transport by Ground (STB, DOT-CFR-HMR49)
